Label on back of pump.

Label on back of pump.

If you bought a Pacific Hydrostar Portable Utility Pump – Model 65836 – from Harbor Freight you may have noticed extra parts in the box and a label on the pump that says “Check brushes after every 100 hours of use and replace as needed.

What does this label mean and why should you care? The motor has something called ‘Carbon Brushes’ inside which help to ‘excite’ the motor to make it spin. These will wear down over time and cleaning them every now and then can keep your pump running smoothly. Read on to find how to perform preventative maintenance on your utility water pump to ensure its reliability in the future.

I bought my pump a little over a year ago and started using it on Sunday, June 28th 2015, since then I’ve used it 98 times (I track my recycled water usage in an excel table and make notes when things change). The pump has probably run for ~ 33 hours (before I wrote this guide I thought that runtime was higher), much less than the 100 hours. This guide should provide a good starting point for wear & tear on the carbon brushes.

The procedure below is a reprint from the owners manual for pump, found on pages 10 – 11 under the section titled “Carbon Brush Maintenance.”

Tools required for this job:

1 – flat head screw driver
1 – Pencil eraser
2 – Spare brushes for Pacific Hydrostar Portable Utility Pump – Model 65836 (if applicable)

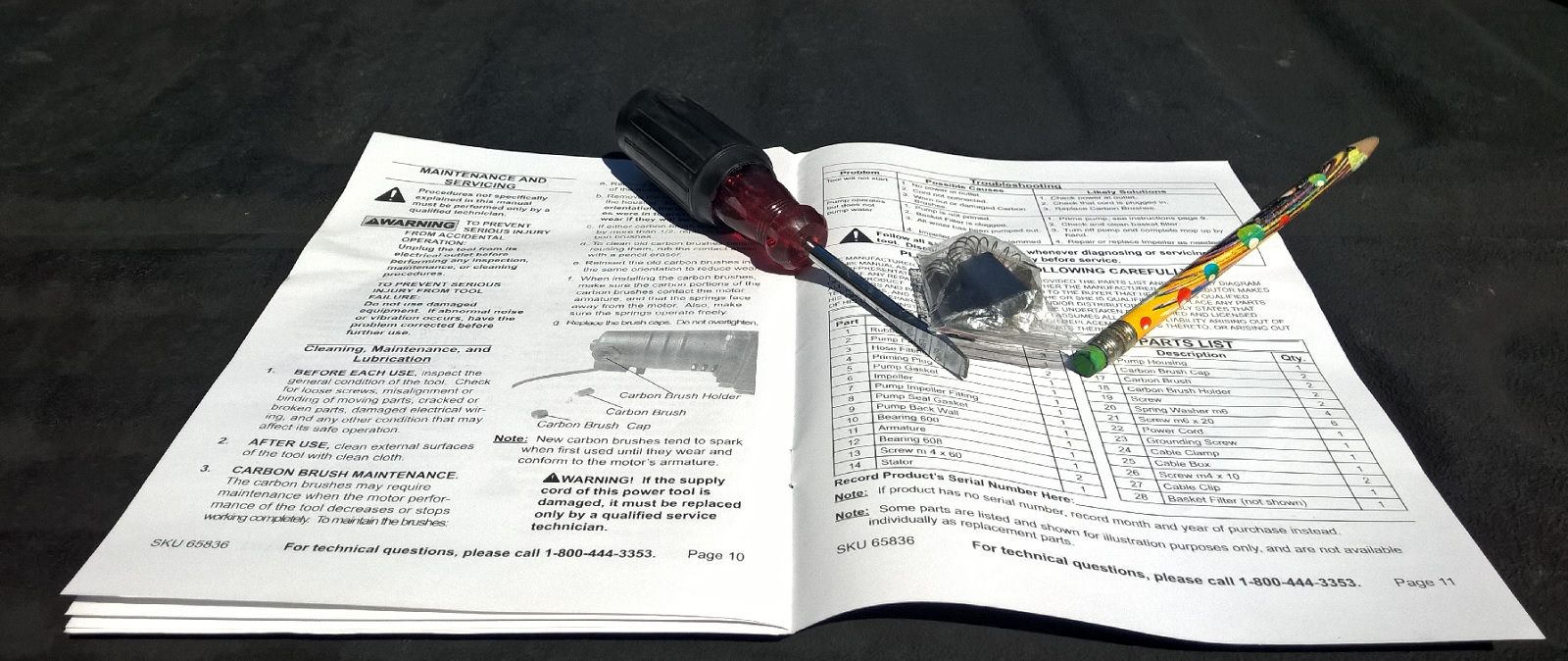

Tools needed for this job.

Tools needed for this job.

The carbon brushes may require maintenance when the motor performance of the tool decreases or stops working completely.

To maintain the brushes:

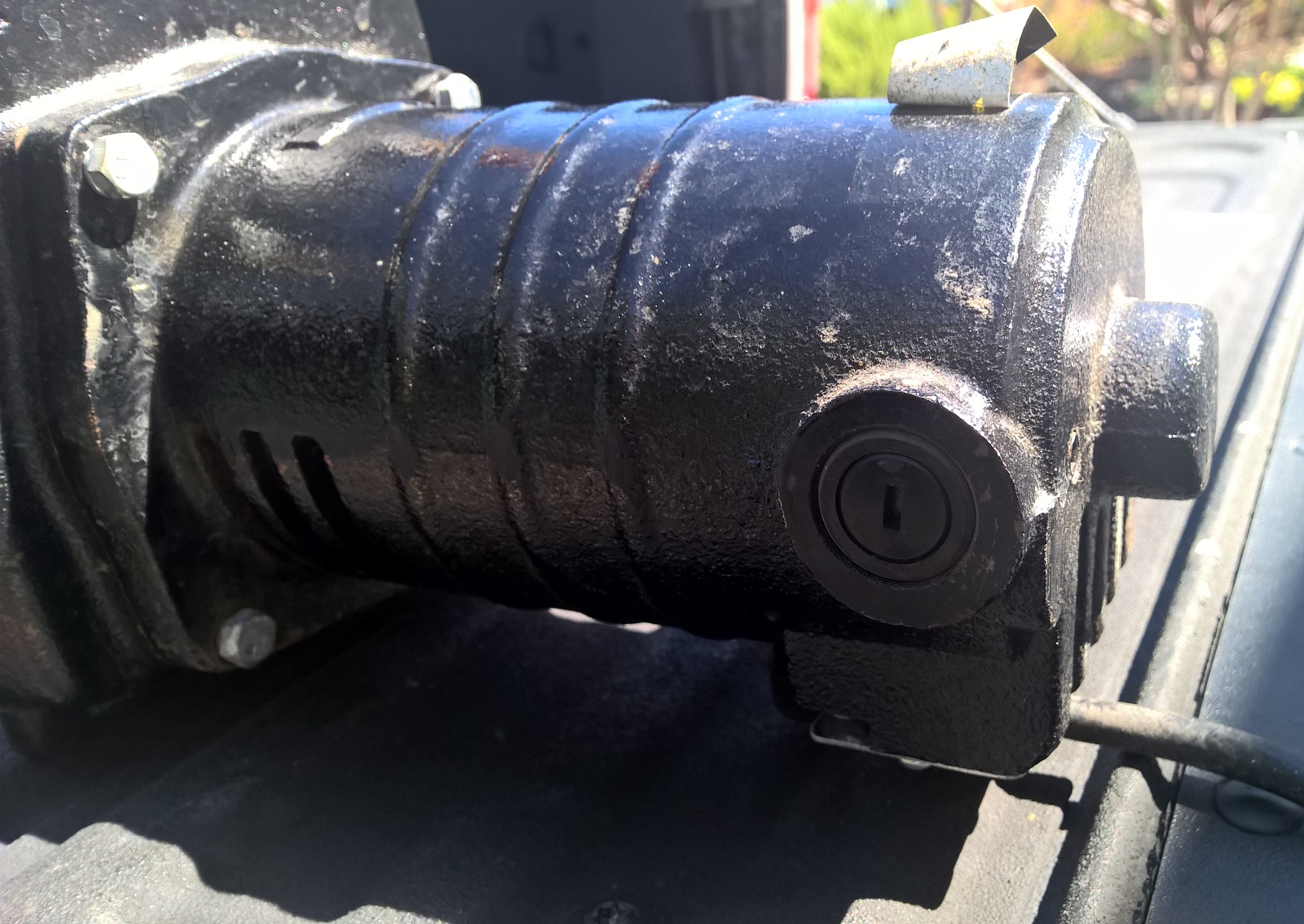

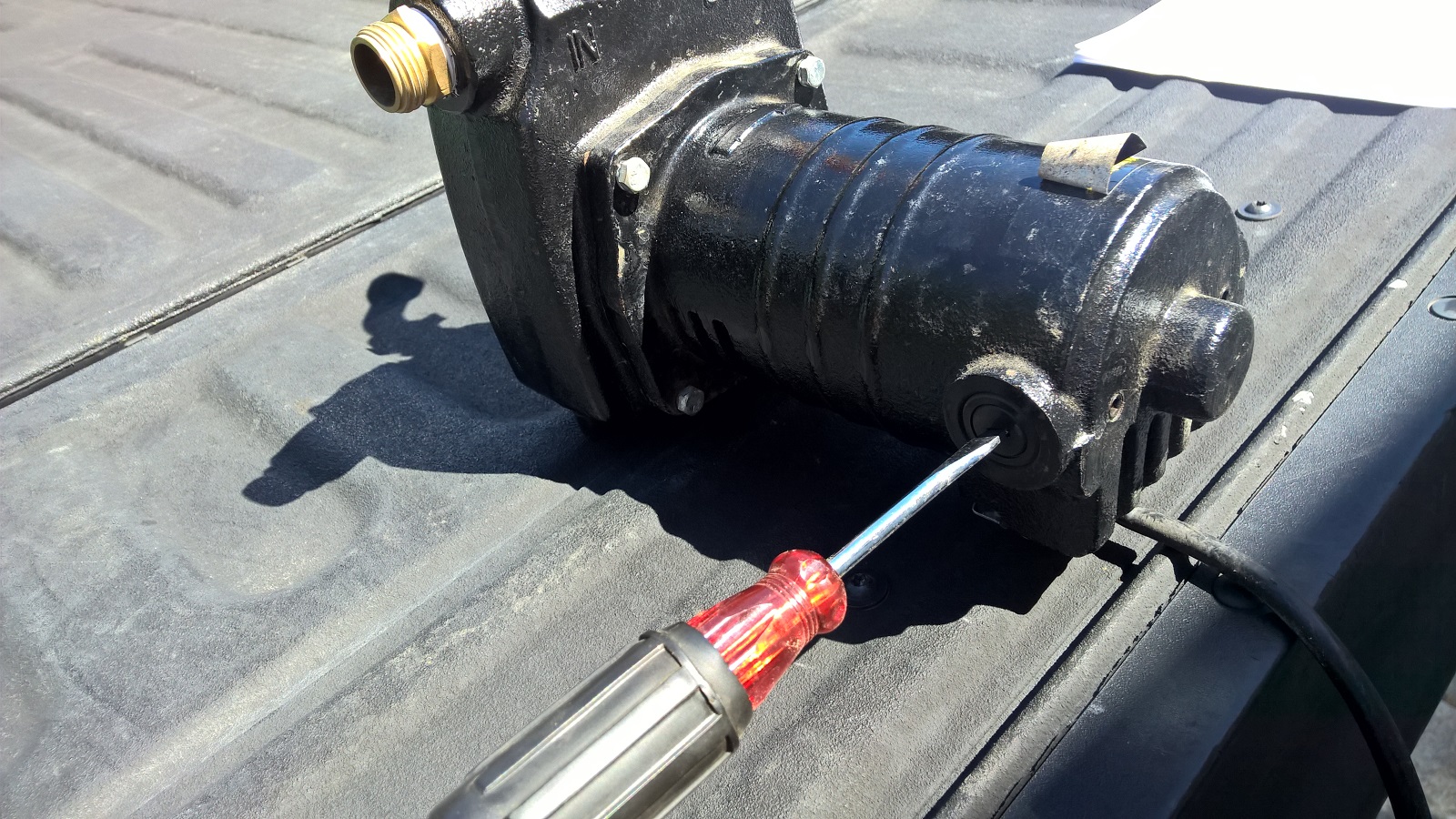

1. Remove the brush cap on each side of the motor housing (do one side at a time).

Click for full size.

Click for full size.

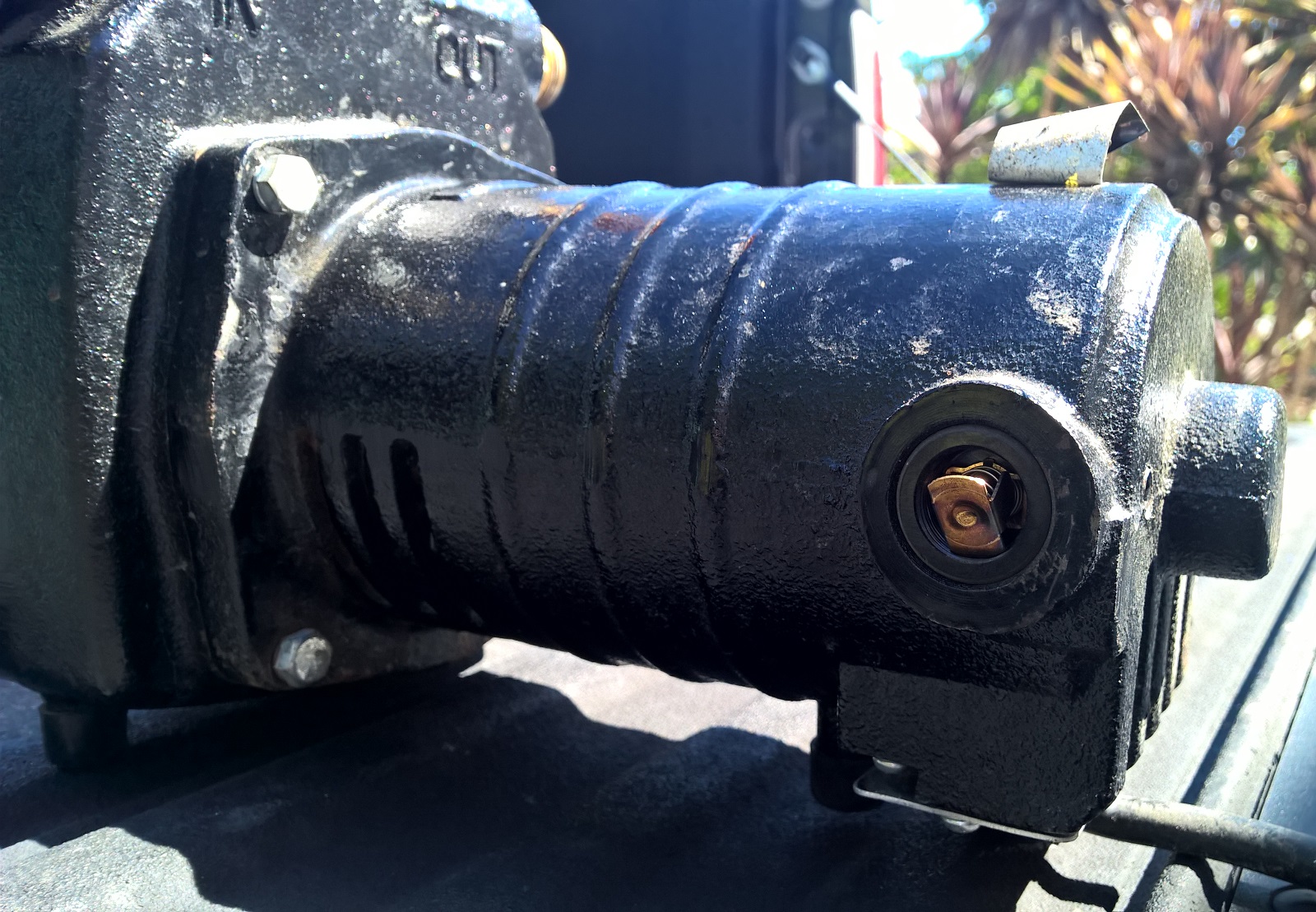

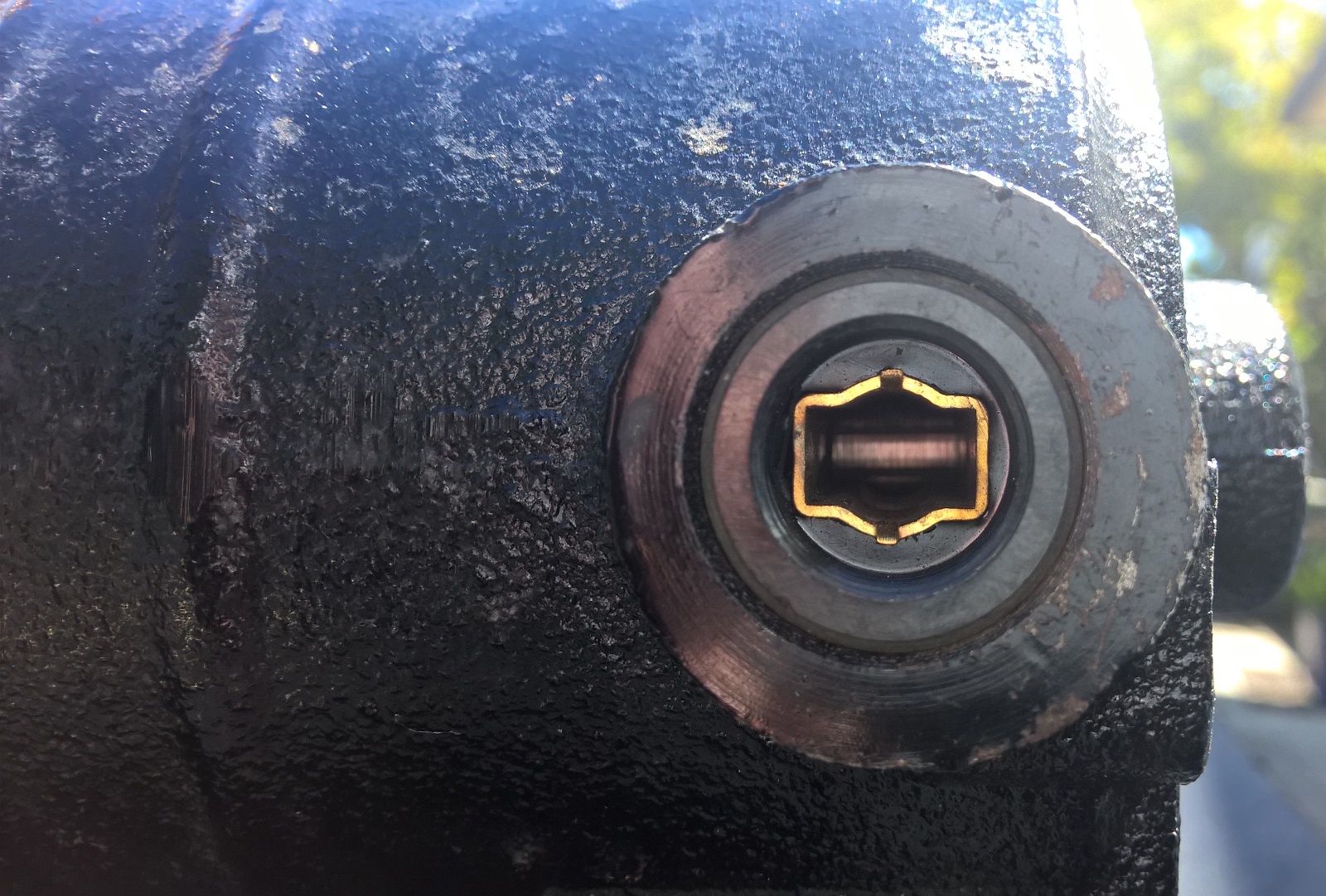

2. Remove the carbon brushes from the housing. Keep track of which orientation the old carbon brushes were in to prevent needless wear if they will be reinstalled.

Click for full size.

Click for full size.

3. If either carbon brush is worn down by more than ½, replace both carbon brushes.

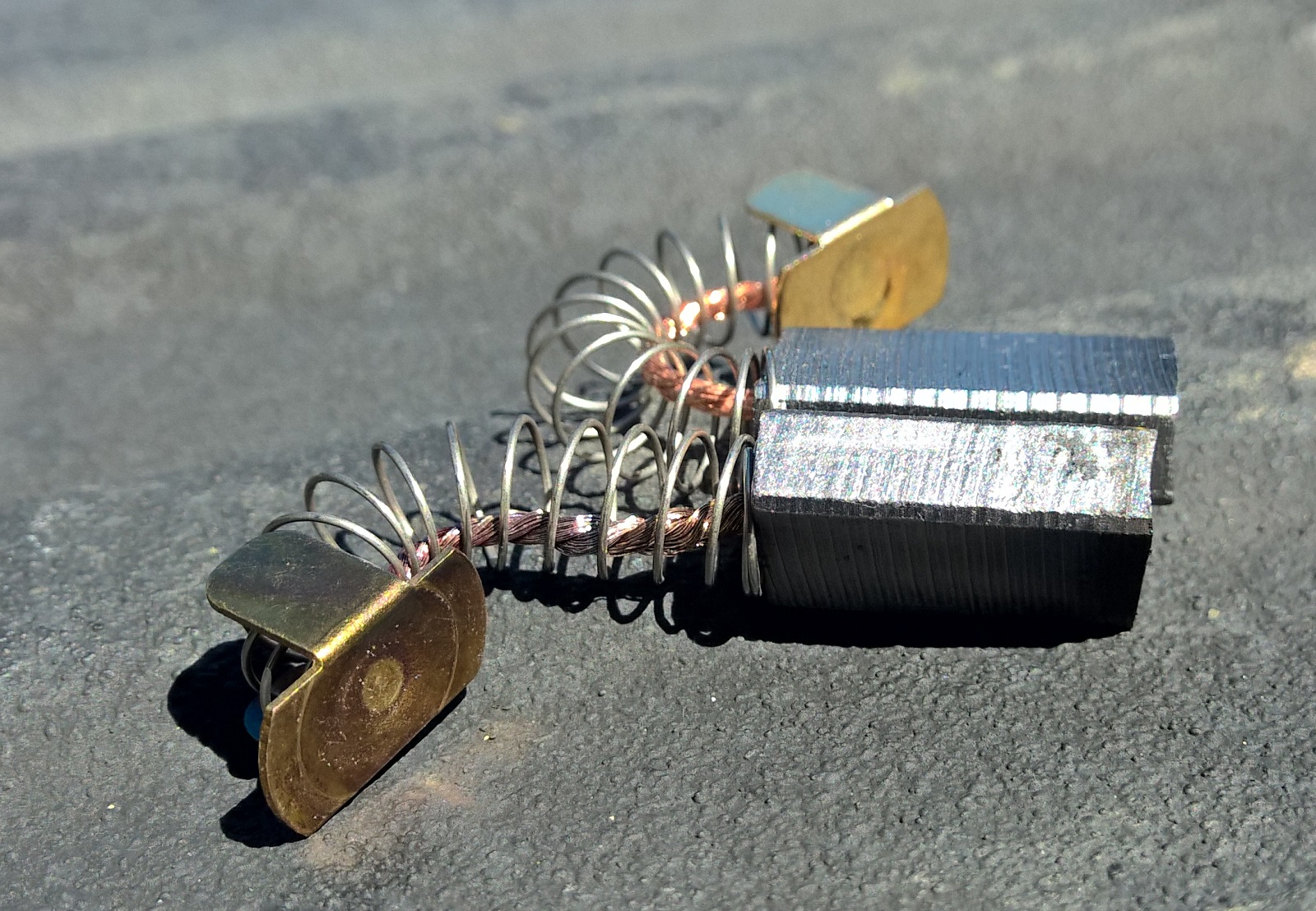

In the photo, a new carbon brush is behind the used brush. About 1 millimeter of carbon has worn away.

Click for full size.

Click for full size.

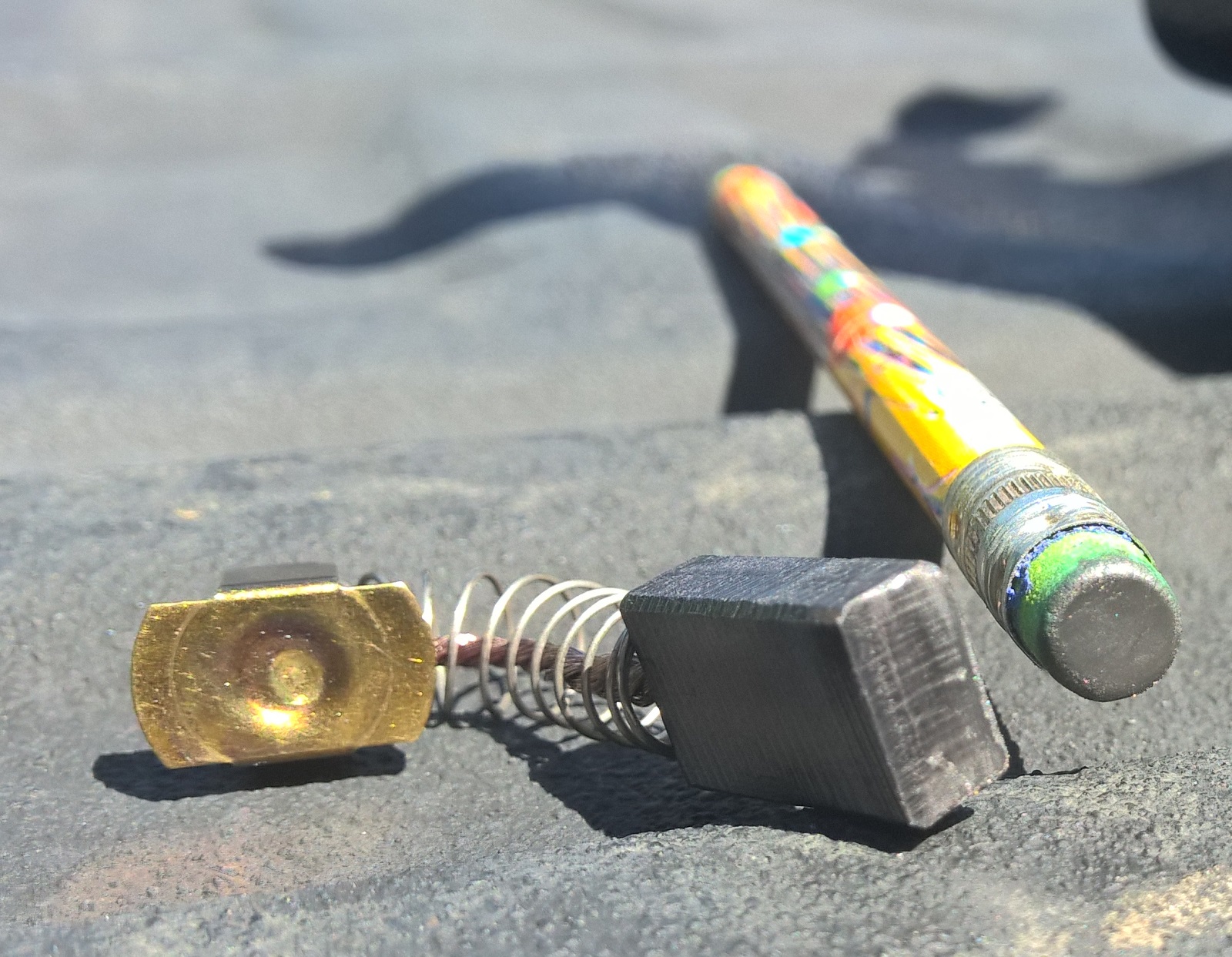

4. To clean old carbon brushes before reusing them, rub the contact areas with a pencil eraser.

The carbon comes off like graphite (similar) and the brush becomes noticeably cleaner.

Click for full size.

Click for full size.

5. Reinsert the old carbon brushes in the same orientation to reduce wear.

Click for full size.

Click for full size.

6. When installing the carbon brushes, make sure the carbon portion of the armature, and that the springs face away from the motor. Also make sure the springs operate freely.

Click for full size.

Click for full size.

7. Replace the brush caps. Do not over tighten.

Click for full size.

Click for full size.

Note: New carbon brushes tend to spark when first used until they wear and conform to the motor’s armature.

Repeat the process on the other side and put everything back together. Below are some photos from that side.

Click for full size.

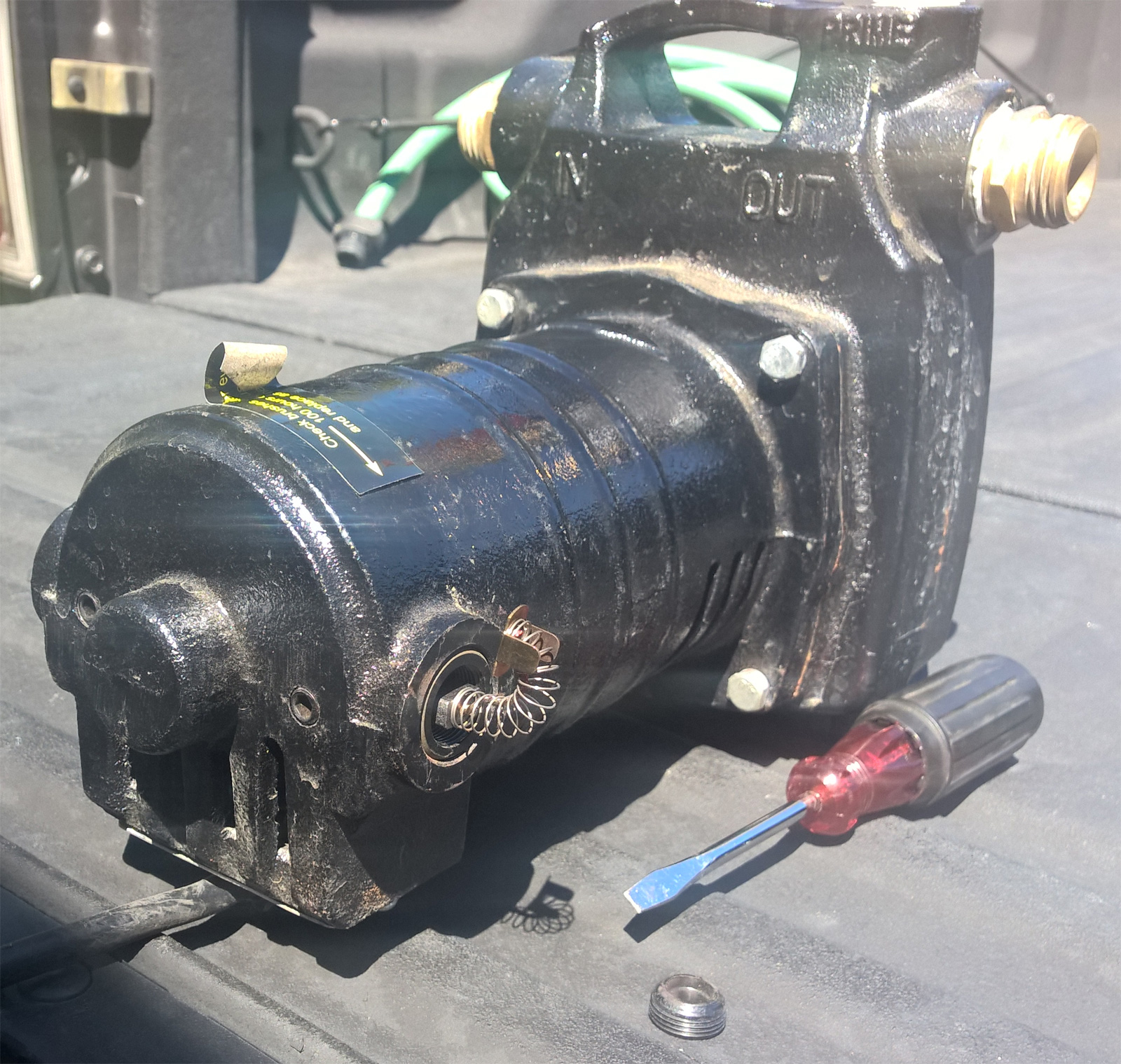

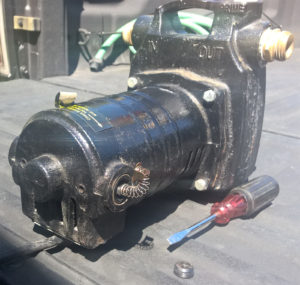

First removing the cap, notice the spring faces up!

Click for full size.

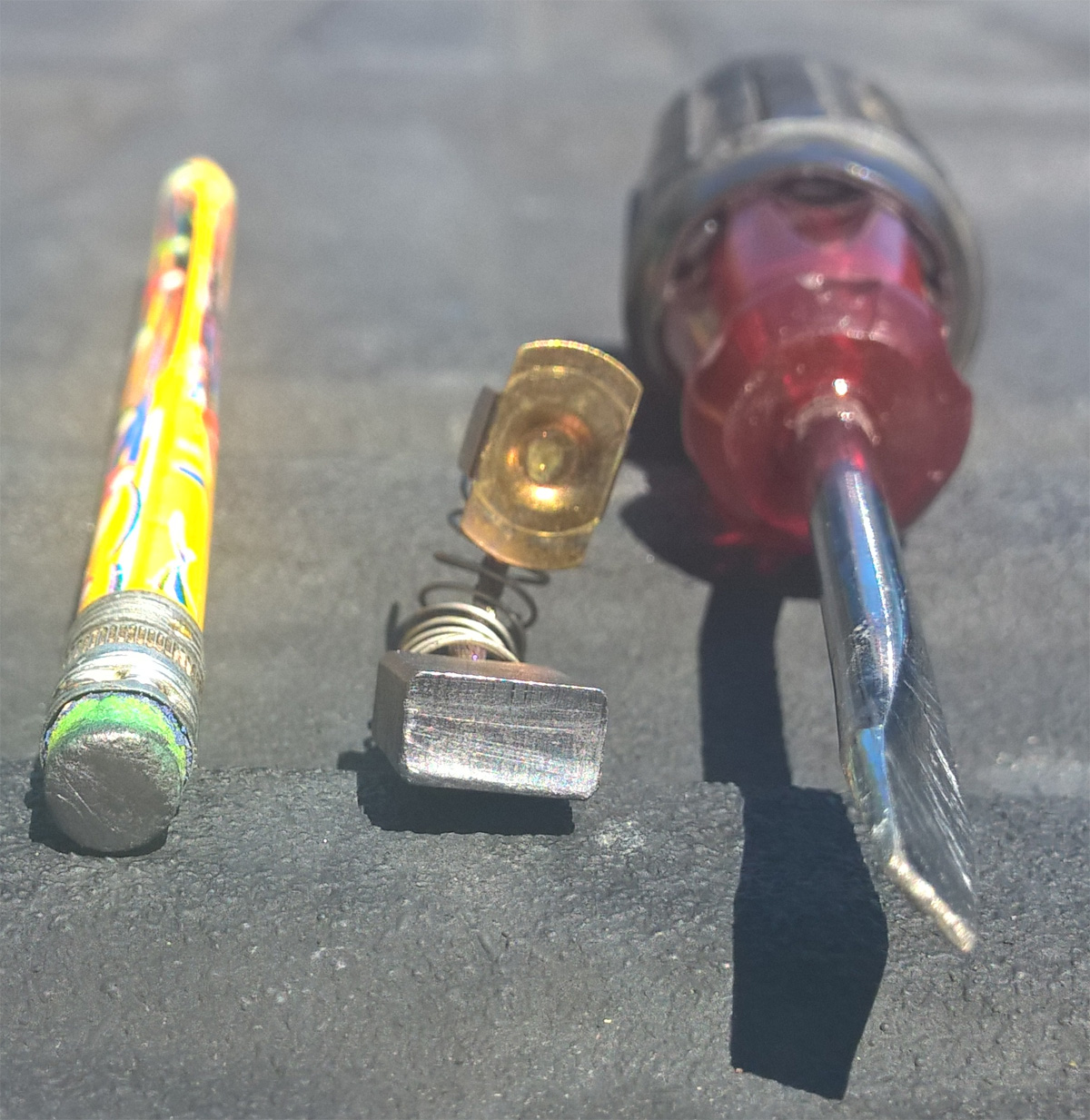

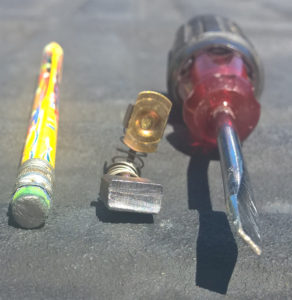

Rubbed brush with eraser.

Click for full size.

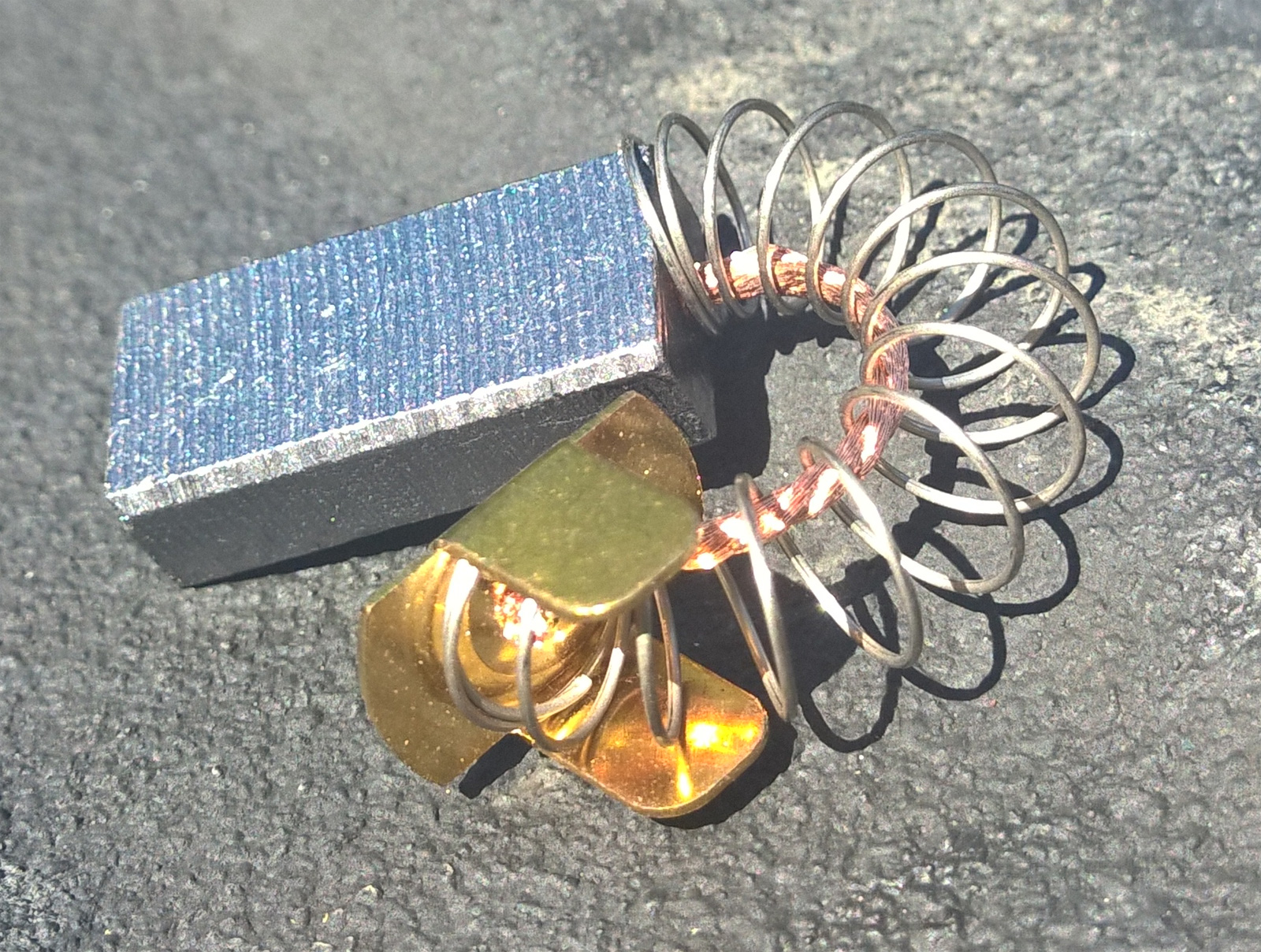

New carbon brush for comparison.



After cleaning the brushes, I put the pump back to together and unloaded another tank of recycled water onto my yard. The pump sounded noticeably quieter, it was getting quite loud before. It also wasn’t sparking as much as before and this maintenance definitely made the pump work and sound smoother.

If you need more carbon brushes, the suggestion is to just buy a new pump. With a 20% coupon at Harbor Freight this pump is easily $60.

Time to complete: 5 minutes.
